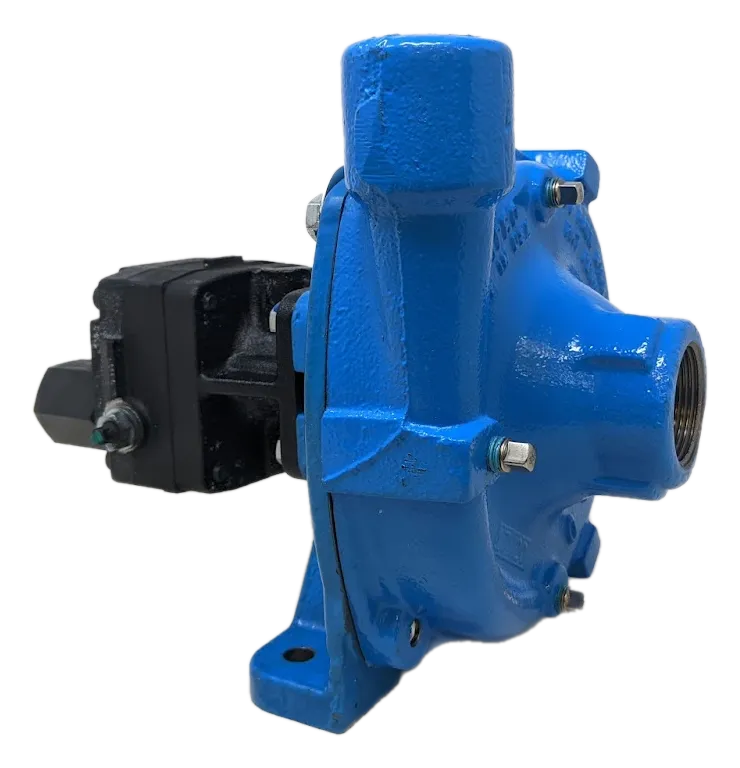

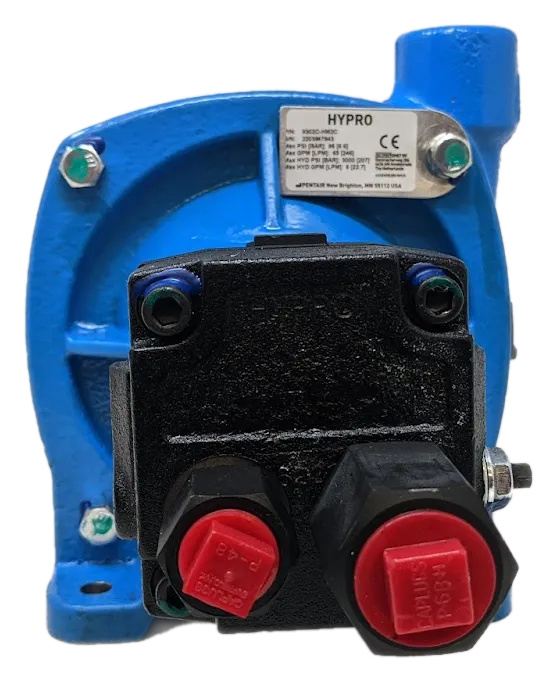

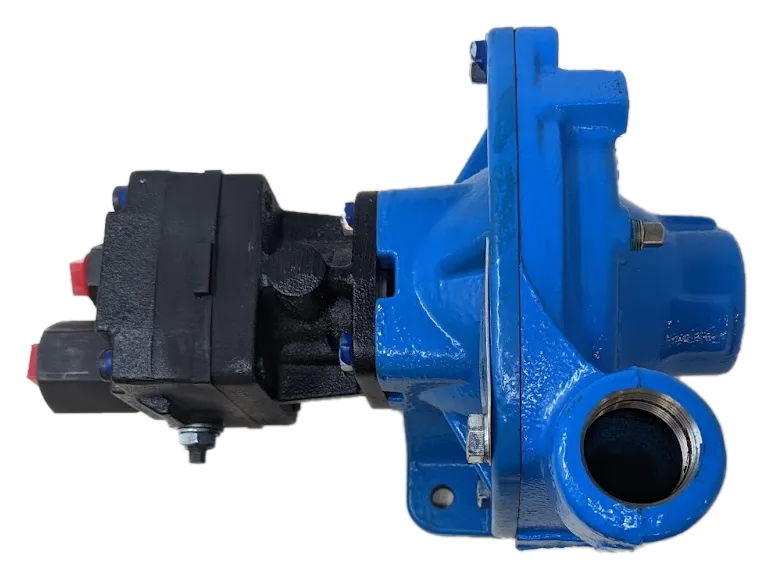

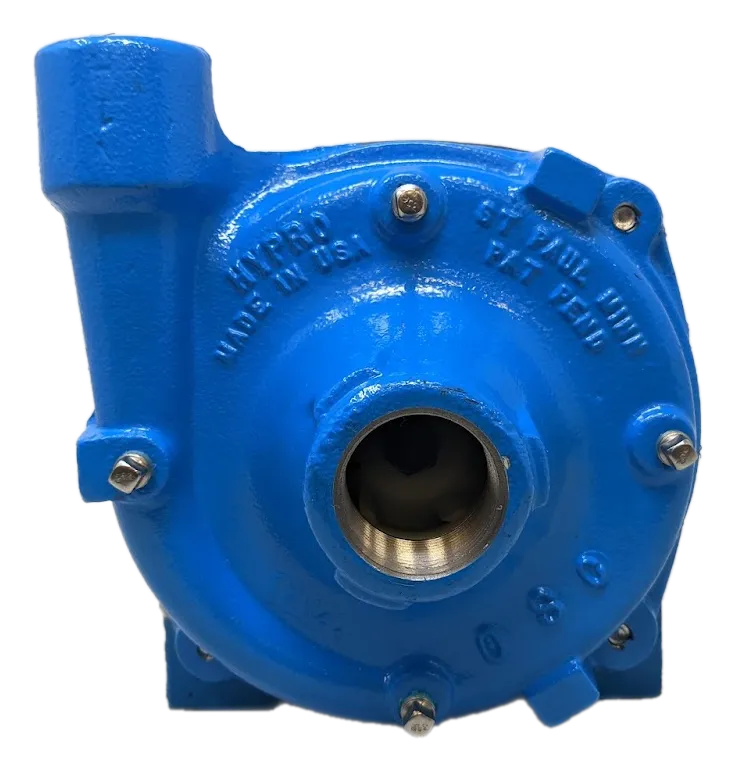

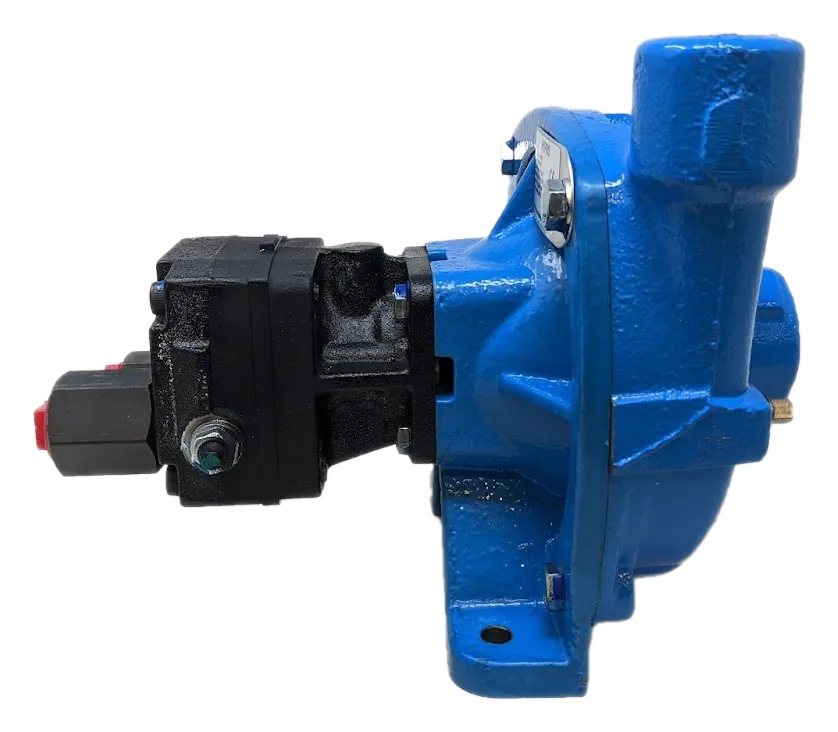

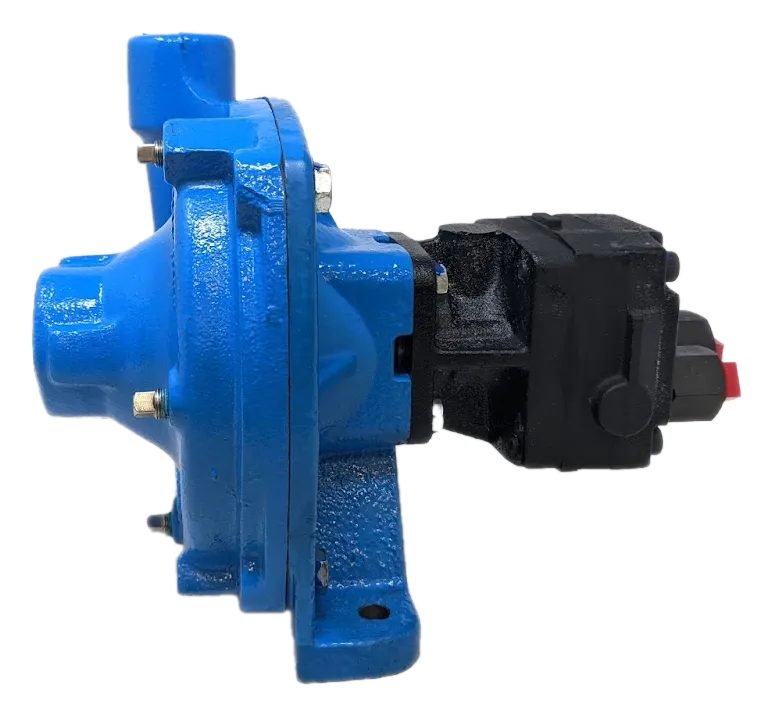

Suited for smaller sprayers and turf units, the HM2C only requires 4-6gpm hydraulic flow and a maximum output of 65gpm
Hydraulic motor drive: For open center, closed center, and load-sensing systems
-Port sizes: 1.25 inch NPT inlet, 1 inch NPT outlet
-Hydraulic ports: 0.5 inch NPT inlet, 0.75 inch NPT outlet-HM Series
- Max. fluid temperature: 140°F/60°C
-Impeller: Cast Iron models – Nylon
-Motor: internal gear gerotor
-Pump seals: Cast Iron models – Viton/ceramic standard; Life Guard silicon carbide (B) available
-Hydraulic motor seal: double-lip Teflon and case drain available
-Max. motor psi: 3000 (bar: 207)
-Weight: 26 lbs./11.8 kg
