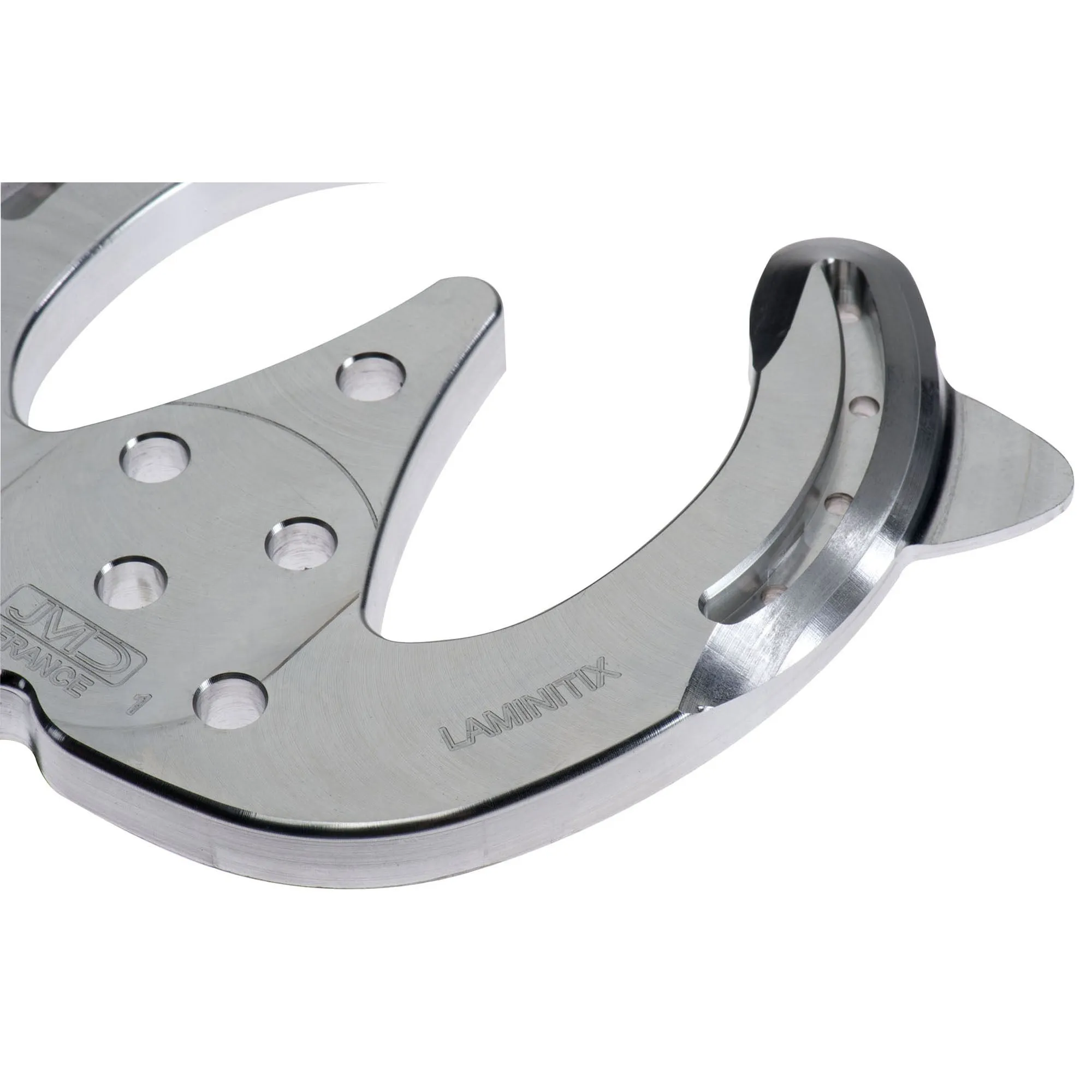

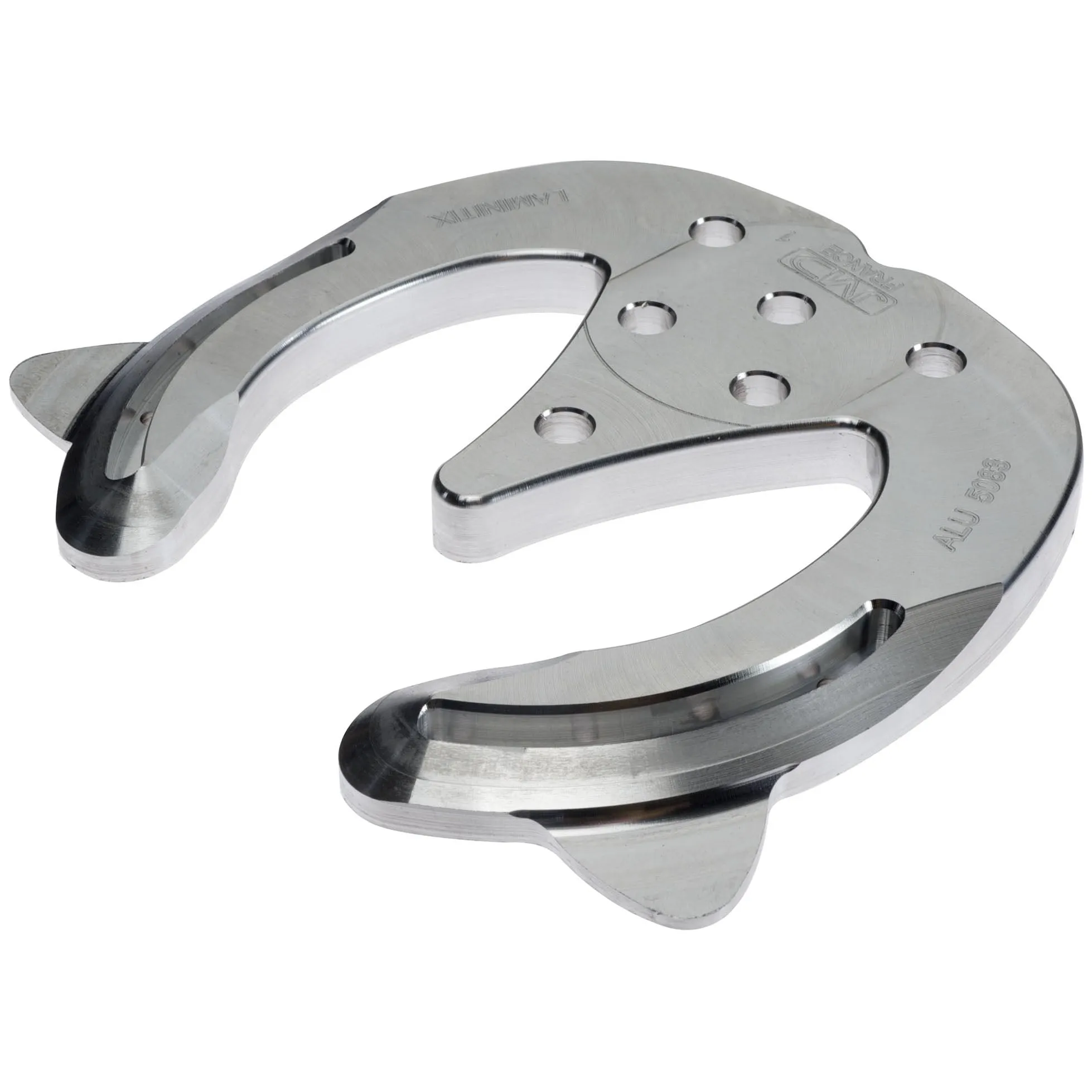

Designed by Professor Jean-Marie Denoix. The Laminitix is a "W" shaped heart bar shoe with an open toe. The wide rear surface runs under the heels and provides ground bearing surface on the frog. Made from hi-tech aluminum alloy.

PRINCIPLE AND INTERACTION WITH THE GROUND:

• Bar-shoe with transversal piece providing wide ground bearing surface to support the rear part of the foot.
• Frog ground bearing surface to support the foot under the frog.
• No ground-bearing surface in the toe.
• The toe opening provides access to treat sole necrosis.
• Injecting hard silicone (MV2-50A) in the foot’s rear provides better load distribution on the cross piece.

BIO-MECHANICAL AND KINE-THERAPEUTIC EFFECTS:

• Transfers weight-bearing to the rear of the foot.
• Supports the distal phalanx.
• Eliminates painful ground-bearing surface of the toe and minimizes dorsal compression of the coronary chorion.

INDICATIONS:

• Symptomatic chronic laminitis provided the horse can be shod.
• For moderate to medium lesions: shoeing only.

Style Available:

• Front = 2 Clips

Non-tempered alloy can be used for risk-free hot shoeing up to 450°C.

Comes with clips that can be ground off with customization.

Thickness 10 mm for wear resistance.

Sold per pair (2 shoes).
